What is an SD-PAK?



Answering this question requires a slight look in to the History of the Tandy Color Computer

Like so many other consoles in the 80s the Tandy Color computer had the ability of providing its users with the immediate gratification of playing a game (or running an application) by simply inserting a “Cartridge” in to its side slot, these cartridges were referred to as (ROM-PAKs), they were called so in regards to the fact that they included an application or program encapsulated within a ROM (Read only memory) chip inside of the cartridge, which upon insertion (and powering up the machine) would Auto-execute.



Originally, if a user developed software he had two options for saving it.

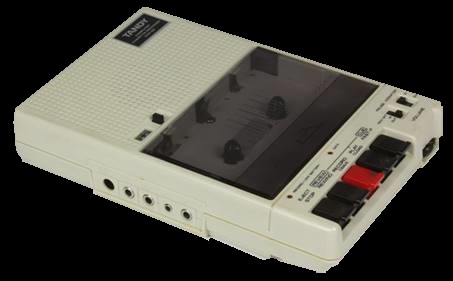

1. Saving and loading on a cassette tape (slow, tedious and prone to failure)



Image result for Radio shack CCR-82

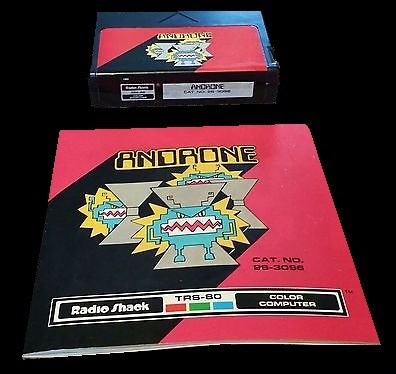

2.    Saving the application on to a ROM chip inside of a ROM-PAK, which was expensive and required special hardware & technical expertise, this was usually reserved for the commercial release of software.

Image result for androne color computer



As time went by and the popularity of the Color Computer increased Tandy (Known as Radio Shack at the time) developed and released a Diskette controller cartridge/Diskette drive unit as well that when inserted in to the  this cartridge slot would allow the user access to one or two Diskette drives (5 ¼ format) in which he/she could save/restore programs.

Image result for color computer disk drive



Sadly, the manufacturing of this type of diskette drive ceased many years ago and with the increasing interest of the Retro Community Diskette drives are in high demand and low supply.



Several years back one of our local Color computer Geniuses Mr. Darren Atkinson, designed and developed a new kind of Cartridge known as a CoCoSDC, This cartridge when plugged in to a Color computer has the ability of emulating a Disk Drive controller and providing access to virtual diskettes in DSK format accessible thru SD type memory cards.





Image result for cocosdc



The SD-PAK is more than anything a “Concept” that takes advantage of the firmware of Mr. Atkinson's CoCoSDC (which has built in provisions for the auto execution of programs), thus allowing us to create the illusion that we are utilizing an SD Memory card in the same fashion we would have used a ROM-PAK Cartridge 30 years ago, hence the name “SD-PAK”, this illusion can further be enhanced by creating Labels that closely mimic the original Labels on the original ROM-PAKs of the 80s.



When inserting a properly configured SD memory card (SD-PAK) in to a CoCoSDC cartridge and turning on your color computer the loading and execution of the program within should be a matter of seconds closely resembling the behavior of an original ROM-PAK in the 80s



SO... HOW DO YOU GO ABOUT MAKING YOUR OWN SD CARDS ?



1. Buy a bunch of inexpensive. low capacity SD CARDs you may get them from your favorite source or...

alternatively order them online here (I have purchased several batches with no complaints)

Make sure to make proper selections before ordering

2. from an administrative elevated command prompt FORMAT These SD Cards in a CoCoSDC Friendly format with the following magic command:



Format    x:    /fs:fat    /a:1024
PLEASE NOTICE X DENOTES THE DRIVE LETTER CORRESPONDING TO YOUR SD CARD
I WILL NOT BE RESPONSIBLE FOR YOU FORMATTING THE WRONG DRIVE)


Explanation  for those who care about  the technicalities:



The FAT Family



The Microsoft Windows FAT (File allocation table) like much all else in the computer world has evolved throughout the years and gone through a number of iterations, 3 in particular of interest to us:

*    FAT12 (Originally designed to define the parameters by which a Diskette would be formatted and used),

*    FAT16 Designed and used for what are now considered smaller hard drives

*    FAT32 which is designed to be used in larger hard drives.

Although these are a number of other types of FAT systems in the computer universe these are the only 3 that concern this article.

Where the term FAT is concerned  often all of these 3 are sadly bundled in to the same word and it is used interchangeably differentiating one from another and although this may be fine in our every day life it presents a SERIOUS problem when it come down to the CoCoSDC



The CoCoSDC is revolutionary, amazing and absolutely a must have, it does however have difficulty reading any SD-CARD formatted in ANYTHING but FAT16 & FAT32



IF for no apparent reason your SD CARD is not read properly by your CoCoSDC .. odds are it is not formatted in something other than FAT16 or FAT32(USE MY MAGIC COMMAND)



 3. GO TRHOUGH THE TUTORIALS

In the following tutorials I will detail exactly how to create and implement your very own SD PAKs

VIDEO TUTORIAL #1
Creating a Mock Up SD-PAK



VIDEO TUTORIAL #2
Creating a Physical/Functional SD PAK"


VIDEO TUTORIAL #3
Creating and printing Avery
Lables



LINKS FOR THIS PROJECT

Artwork & Software creation templates

Amazon Link to correct Avery Labels

Avery Design & Print Software

PRE Created SD-PAK Avery Label templates



OTHER COOL LINKS

Vincent Tran's Awesome Telnet BBS

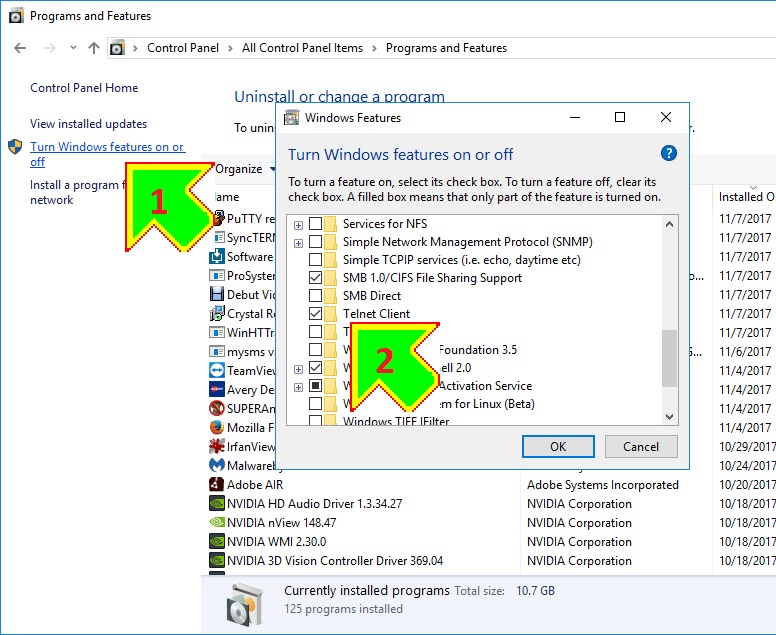

NOTE: if this doesn't work JUST BY CLICKING ON IT, it means TELNET client is'nt installed on your machines in most newer operating systems this has to be installed by going to windows features.,
