RGB MATRIX INTEGRATION IN TO ARCADE MACHINE EMULATOR CABINET

WIRING

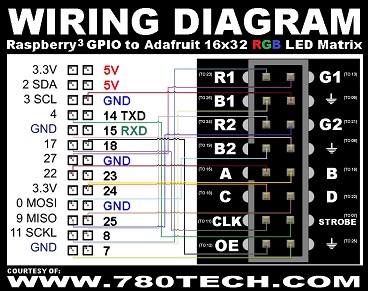

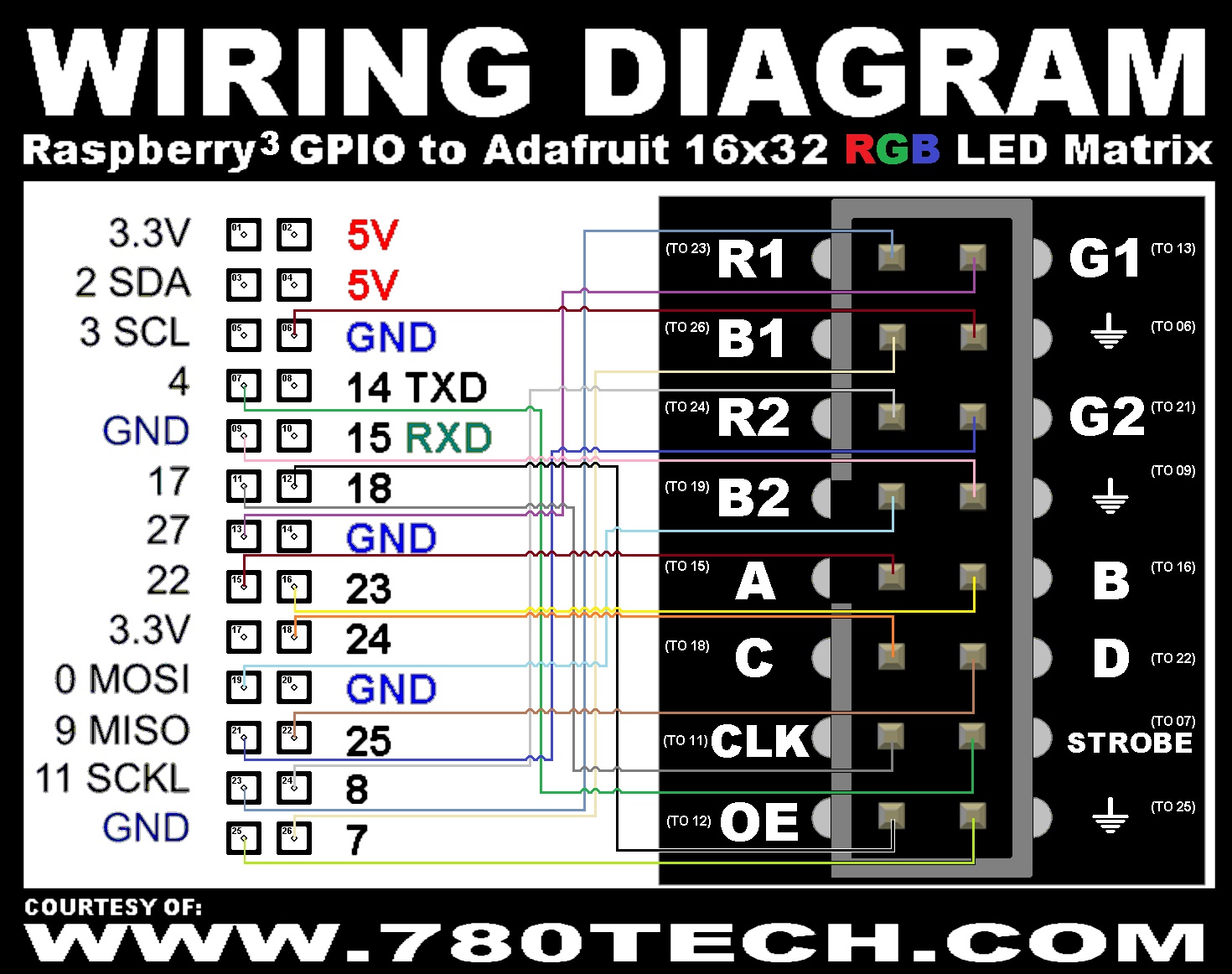

MANUAL WIRING CHART (Click for large image)

*    Using the Dupont Female-Female jumper wires.wire according to wiring diagram.

(Triple check every jumper wire, getting this wrong COULD cause permanent damage)

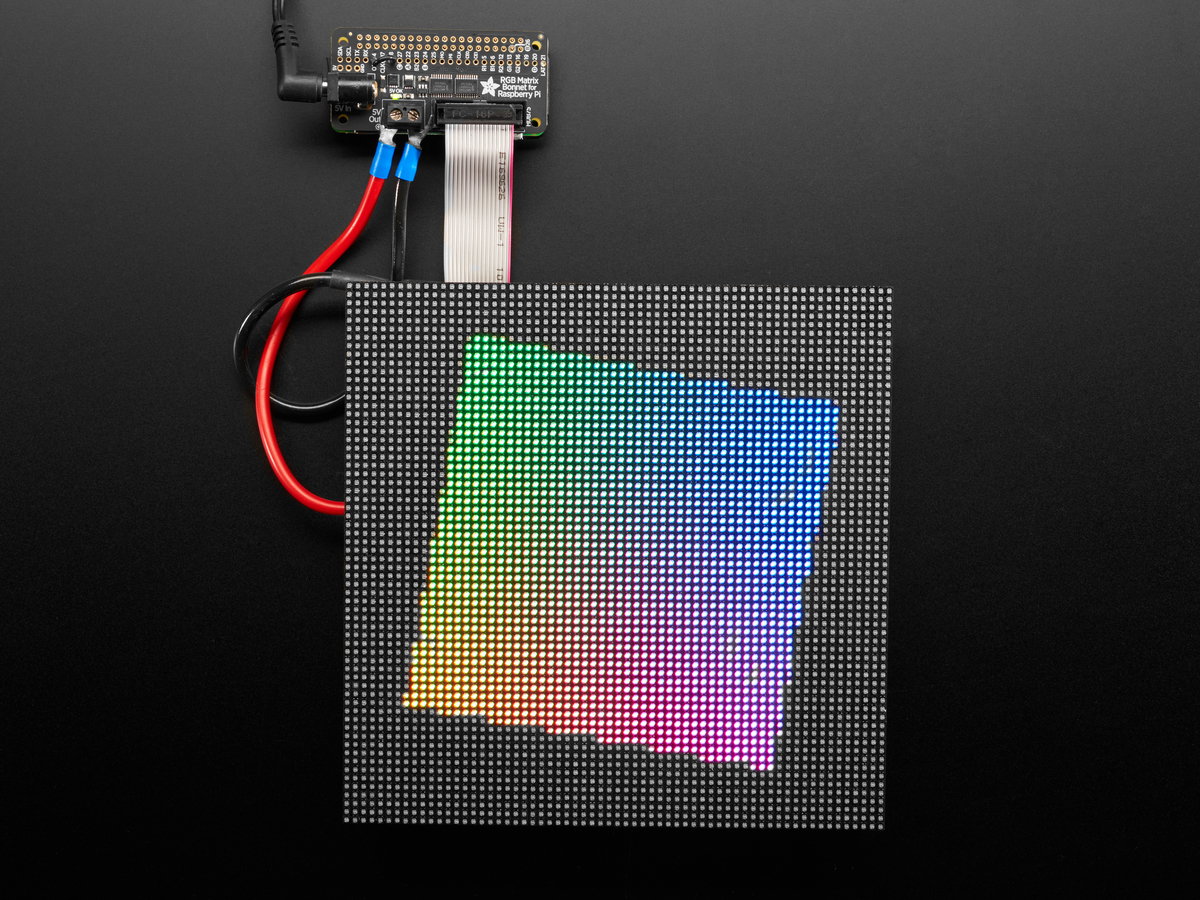

WIRING USING Adafruit RGB Matrix Bonnet for Raspberry Pi  (Click for large image)

*    Plug in ribbon cable Bonnet Board in to Raspberry Pi paying special attention to proper pinot.

*    Plug ribbon cable in to Bonnet (it is keyed and CANNOT be plugged in incorrectly)

*    Plug Ribbon cable in to LED Matrix board (it is keyed and CANNOT be plugged in incorrectly)

*    Connect Red & Black power leads from Bonnet for Raspberry Pi to power connector on LED matrix (it is keyed and CANNOT be plugged in incorrectly)

*    Plug in (1) 5V 10A Power Supply in to Adafruit Bonnet board for Raspberry Pi
